FLAT ROOF SYSTEMS
BALLASTED OR FASTENED – FOR ANY measurements
Schletter’s flat roof mounts are specially designed for quick and easy installation to match structural conditions: experienced engineers calculate the optimum design for your roof’s unique shape, size, and slope, to ensure that loads are within limits and are spread optimally over the building’s structure. In addition to wind speed and snow load limits, our designs comply with all appropriate building regulations. Extensive planning and intelligent design procedures ensure that the integrity of your roof is never compromised and remains completely leak-proof.
INTRODUCING PROLINE
A new generation of solar mounting systems for pitched and flat roofs
Improving the efficiency of solar installations remains the driving force in the PV sector. Our new ProLine series meets the requirements of tomorrow’s mounting systems by using less material and offering better load-bearing capacity, simplified planning, improved handling on site, and optimized installation times. Using these requirements as our goals, we engineered the ProLine series, a new generation of solar mounting systems for residential and industrial roofs – now also available in black.
COMPONENT OVERVIEW
Download Schletter’s new component overview for roof installations or order a free printed version.
SCHLETTER CLASSIC – SYSTEM OVERVIEW
BALLAST-OPTIMIZED SOLUTIONS

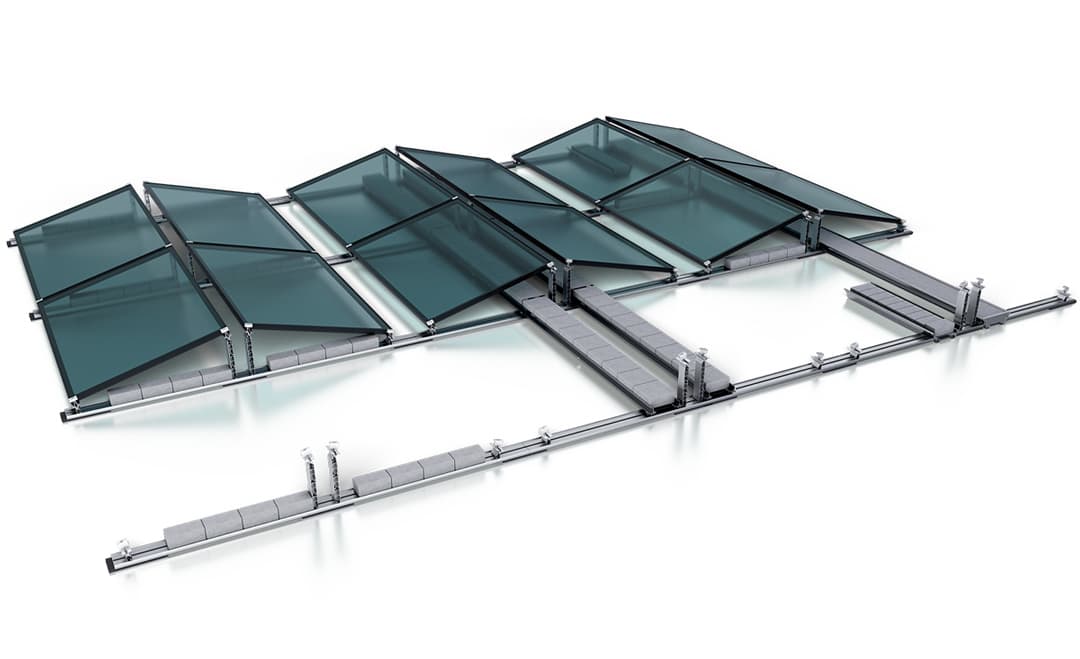

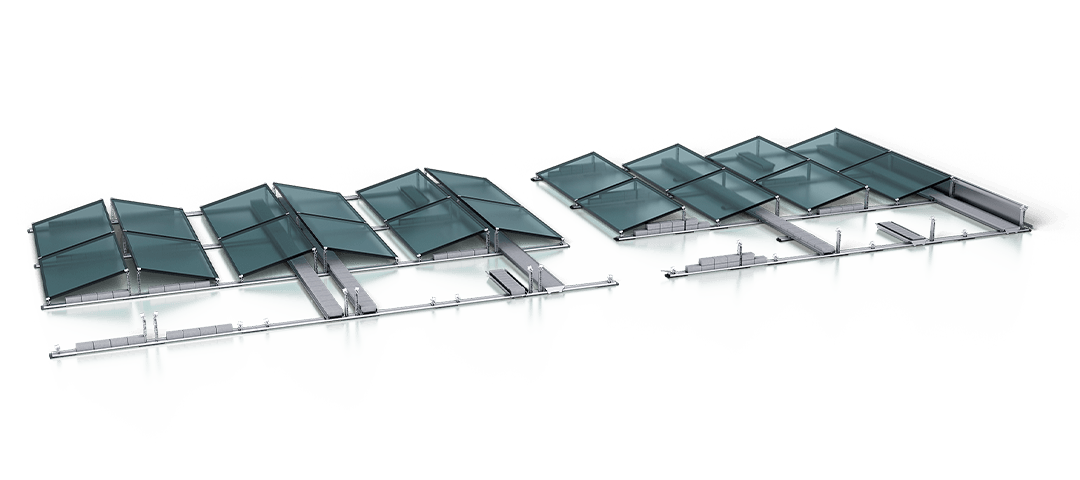

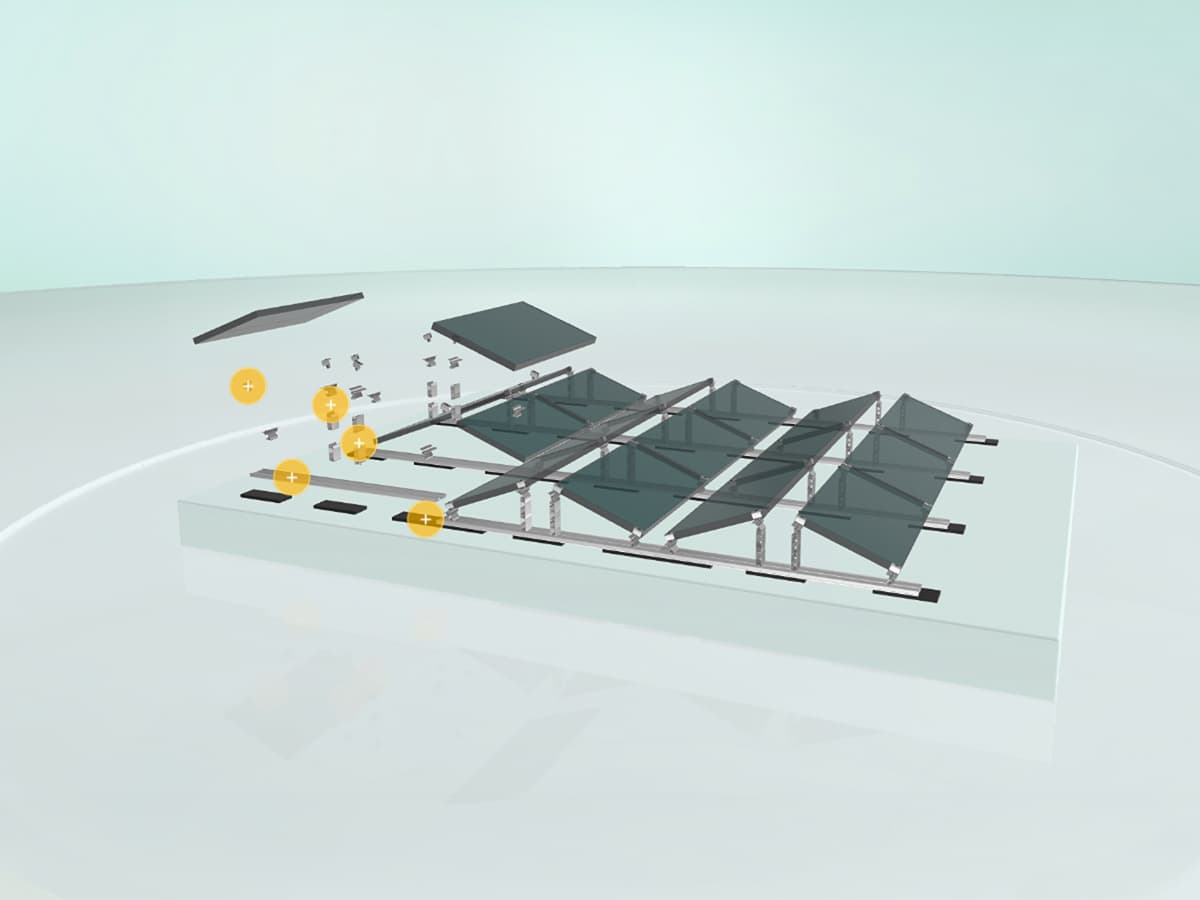

FIXGRID18
Description:
- Aerodynamic flat roof tracking system
- Can be raised to 6° and 13° angle or 10° angle on request
- Ballast optimized
- Available with quarter-point clamping for the modules on request
- Includes building protection with aluminum lamination
Advantages:
- Quick assembly
- Easy to store
- Great value
- Optimized tools and materials
- No additional hardware needed for up to a 5° roof pitch

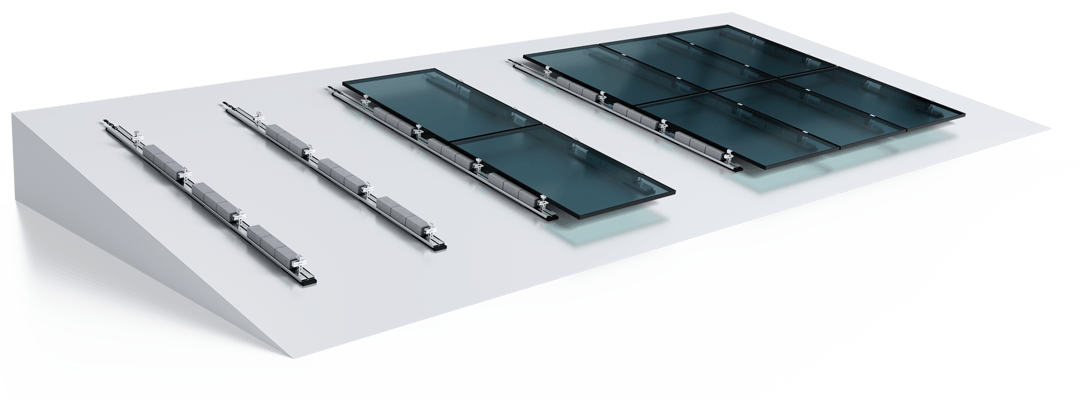

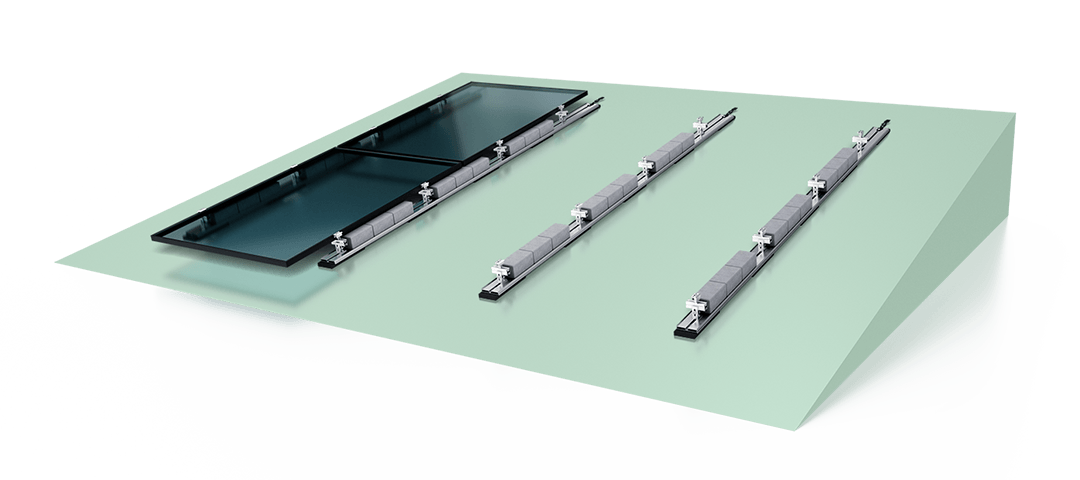

FLATGRID
Description:
- Cost-efficient system for slightly inclined or flat roofs
- Roof-parallel (flush mount)
- Unit assembly system is compatible with most Schletter components
Advantages:
- Very few superimposed loads required
- Integrated surface protection mat
- Optimized for material and cost
- Schletter Configurator

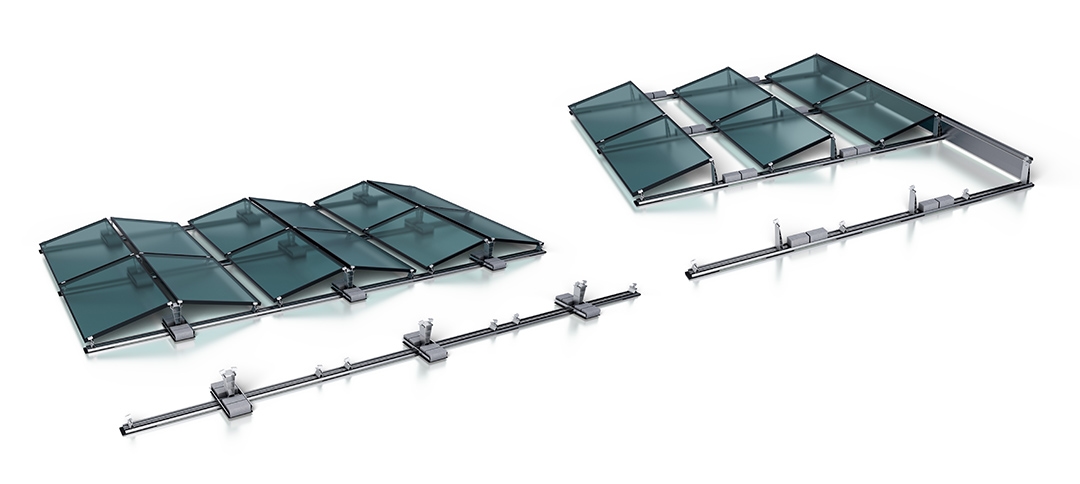

SUPPORT SYSTEMS
Description:
- Various system configurations for any elevation angle
- Ballasted and mechanically linked variants
- Select support angles in 5° increments
Advantages:
- Optimal yields
- Can be combined with all Schletter standard products
- Quick assembly
FASTENING TO THE SUBSTRUCTURE
ISOTOP
Description:
- Designed for industrial roofs with wide spans
- Fastens to the girders
- Object planning is based on an individual structural analysis software
Advantages:
- Reduced loads on the roof substructure
- Direct load application for the supporting structure of the building
- Optimized and minimized roof penetrations
- Improved connection details
