PITCHED ROOF SYSTEMS
PARALLEL OR ELEVATED MOUNTING for any roof
The sheer number of roof shapes and pitches make it challenging to install a solar panel system. Given the extensive range and dynamic modular structure of Schletter mounting systems, we’re able to place solar panels on nearly any roof.
All of our pitched roof solar mounting systems are highly durable, easy to install, and come with impressive load capacities and structural certificates.

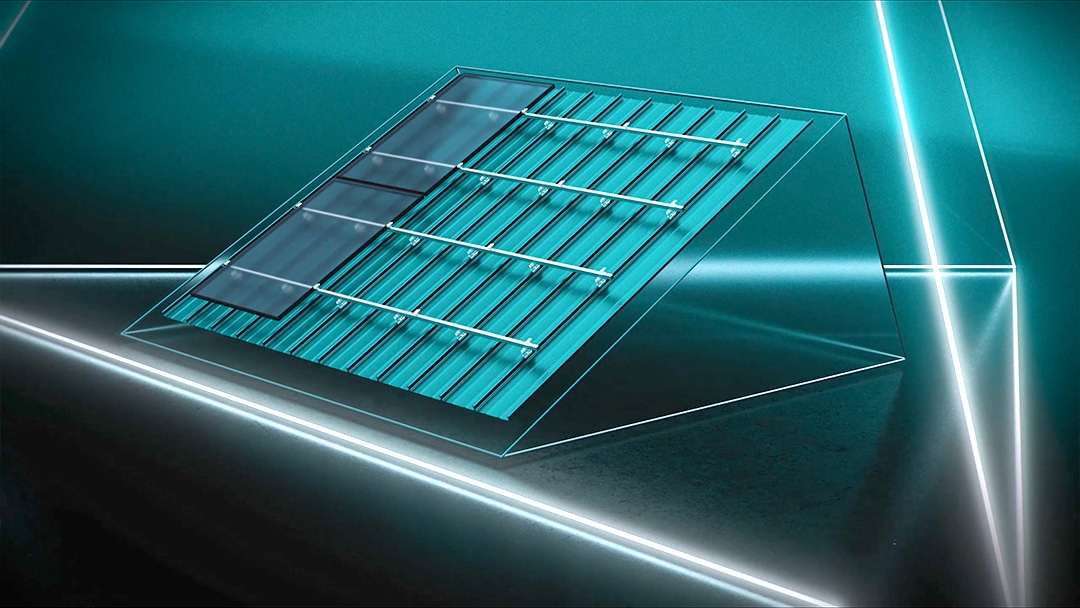

INTRODUCING PROLINE
A new generation of solar mounting systems for pitched and flat roofs
Improving the efficiency of solar installations remains the driving force in the PV sector. Our new ProLine series meets the requirements of tomorrow’s mounting systems by using less material and offering better load-bearing capacity, simplified planning, improved handling on site, and optimized installation times. Using these requirements as our goals, we engineered the ProLine series, a new generation of solar mounting systems for residential and industrial roofs – now also available in black.
COMPONENT OVERVIEW
Download Schletter’s new component overview for roof installations or order a free printed version.
SCHLETTER CLASSIC – SYSTEM OVERVIEW
ROOF-PARALLEL MOUNTING

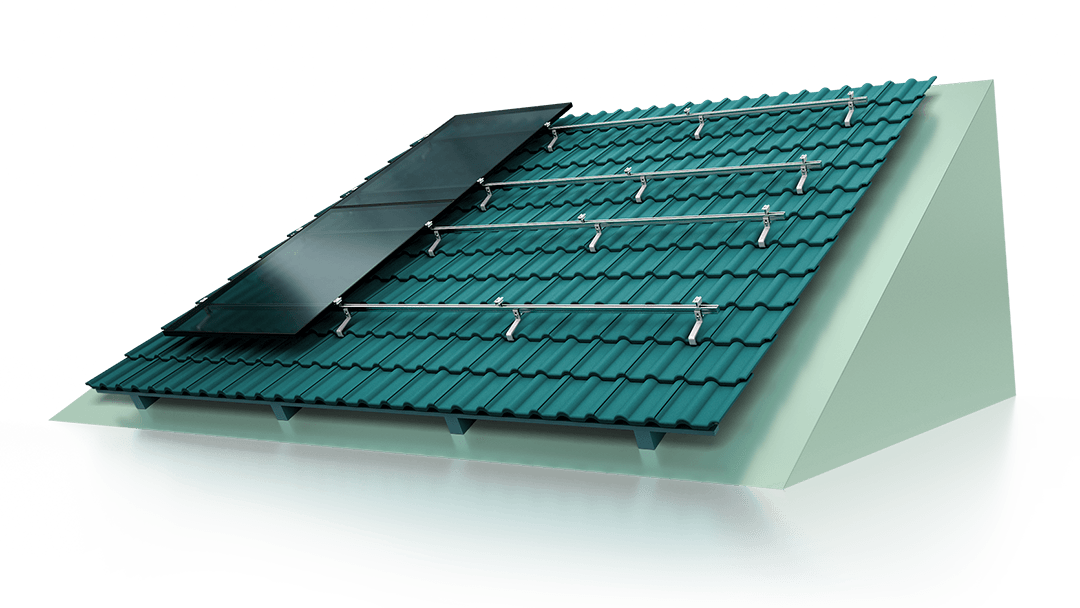

FIXING SYSTEMS FOR TILED ROOFS
Description:
- Roof hooks for all common brick types
- Optimized geometries against broken brick
- High quality (VA or aluminum)
- Adjustable height
Advantages:
- Can be combined with all Schletter standard profiles
- Fast assembly
- Good value
- Storability
- Fast and easy to plan

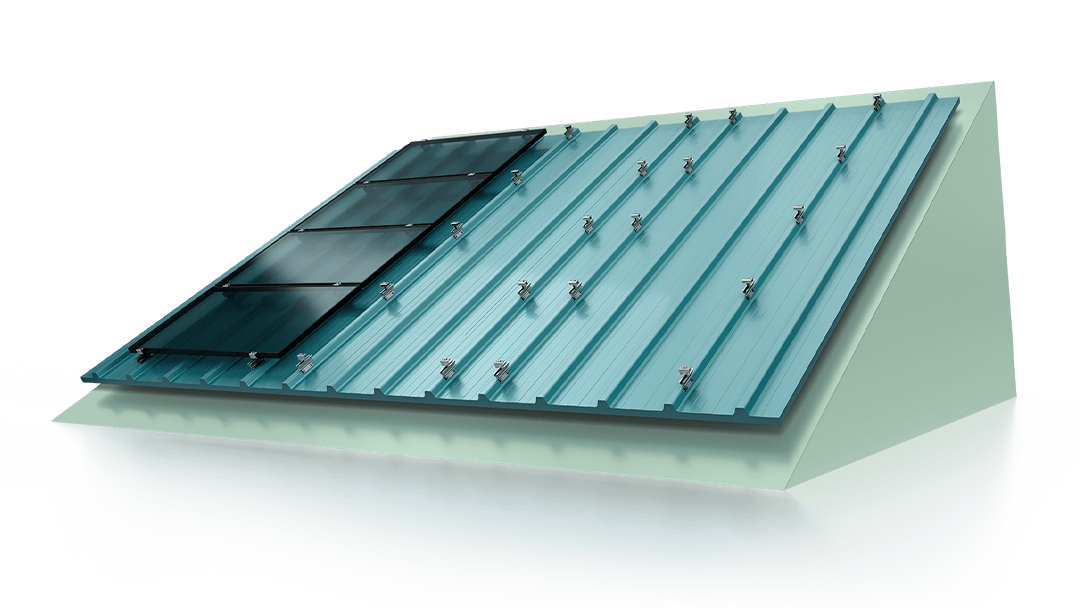

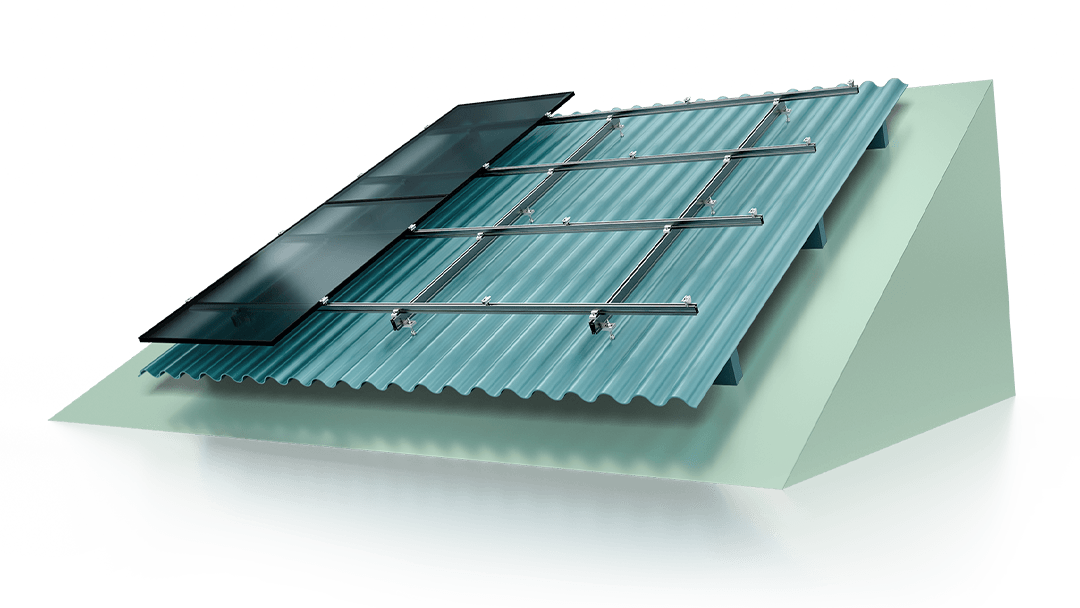

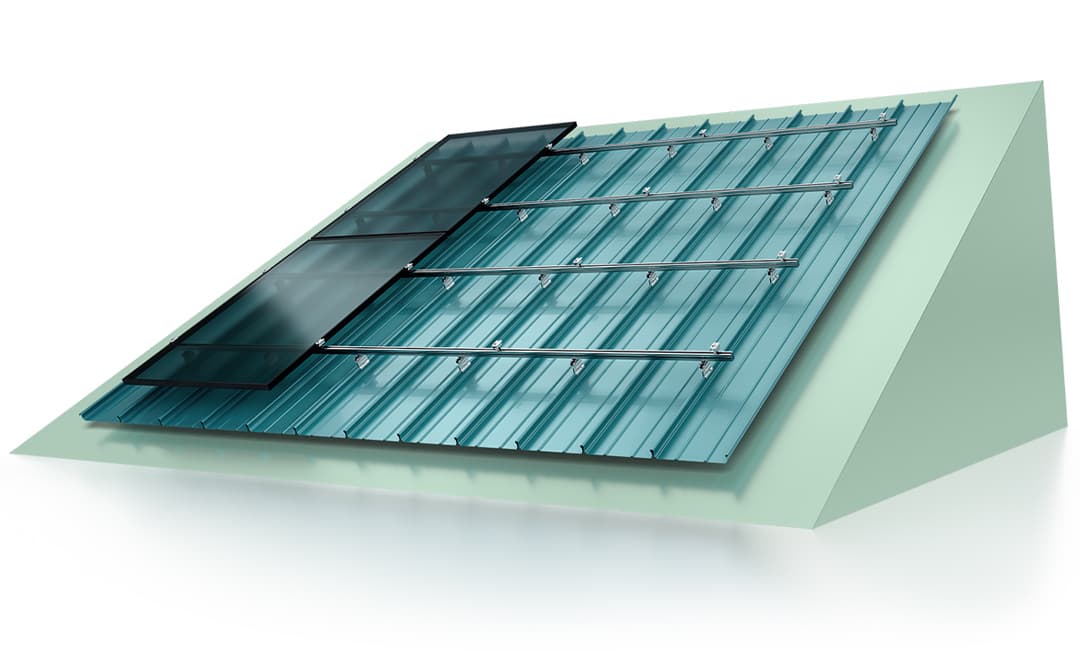

FIXING SYSTEMS FOR SHEET METAL ROOFS
Description:
- Fastening solutions for trapezoidal sheet metal and all common sheet metal roofs
- Developed for adaptation to all standard profiles
- Screw connection on the side of the trapezoidal sheets for optimum load transfer into the roofing
- Form-fitting clamping solutions for fastening to metal rebate roofs
- State-of-the-art systems for connection to the substructure
Advantages:
- Can be combined with all Schletter standard profiles
- Fast assembly
- Good value
- Storability
- Fast and easy to plan
- Variable use
SPECIAL FASTENING SOLUTIONS
Description:
- Due to the diversity of the Schletter fastening systems, applications can be found on almost all roof coverings
- All fastening systems can be combined with Schletter standard profiles
- Hanger bolt solutions for fiber cement roofs
Advantages:
- Can be combined with all Schletter standard profiles
- Quick assembly
- Excellent value
- Easy to store
- Fast and easy to plan
- Variable use
ELEVATED MOUNTING

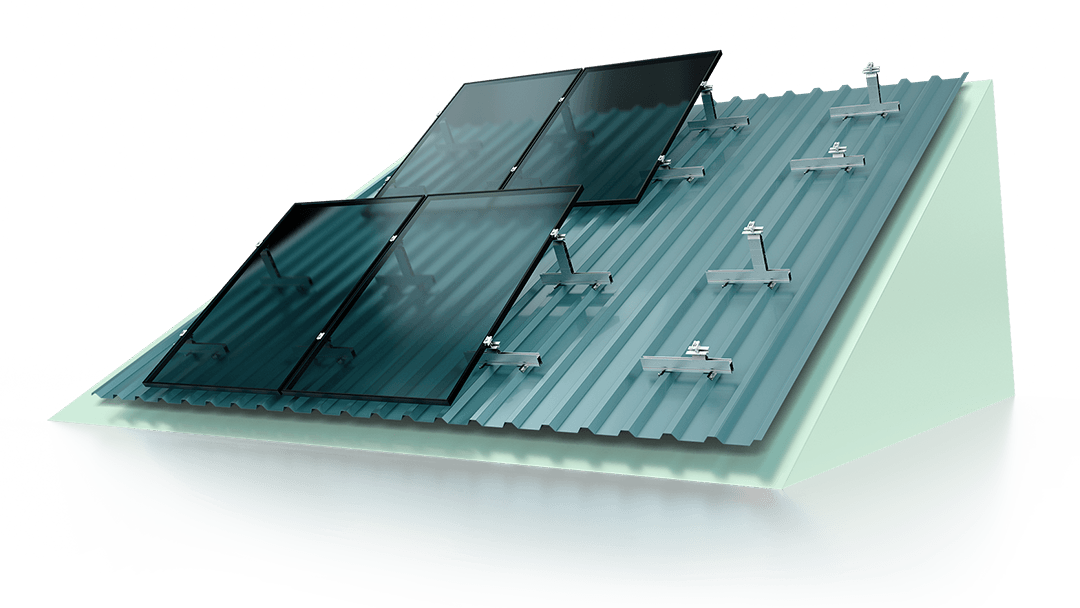

FIXZ-7 | FIXZ-15
Description:
- Slight elevation on trapezoidal sheet metal for framed modules (elevation angle of 5° - 7° respective 13° - 15°)
- Can be used for all common 60 or 72 cell modules
- Mainly fastened using trapezoidal sheet metal clamps
Advantages:
- Quick and easy to mount
- Improved rear-ventilation
- Enhanced self-cleaning
- Optimum load transfer by roof cladding
- Extra yield with favorable system price
