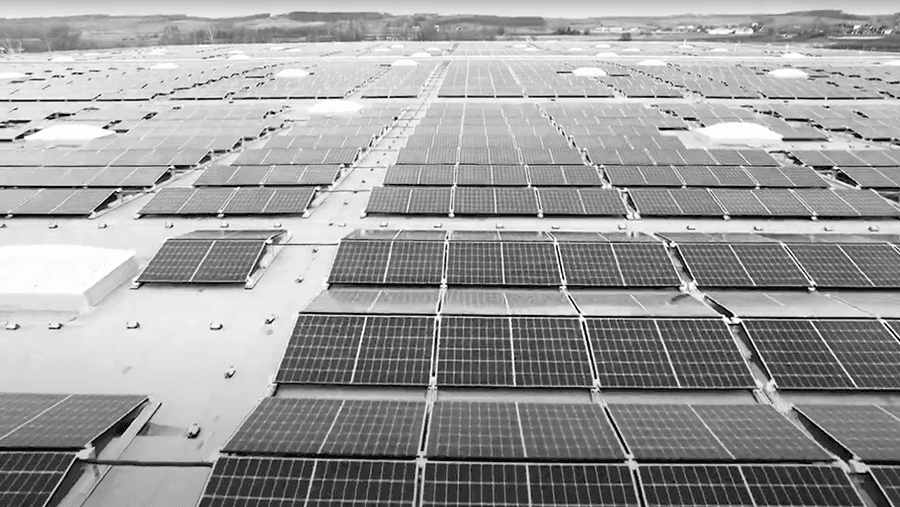

FLAT ROOF SYSTEMS

BALLASTED OR FASTENED –
FOR ANY measurements

Schletter’s flat roof systems are particularly quick and easy to install and can be adapted to all static and structural requirements. Our structural engineers will calculate the best possible design for the unique shape, size, and pitch of your roof. This ensures that the loads are optimally distributed across the building structure and that the load limit is adhered to. Our team takes all relevant building regulations into account in addition to the local wind rates and snow loads.

For fastened systems, we minimize the number of roof penetrations required through intelligent planning, ensuring that your roof remains watertight.

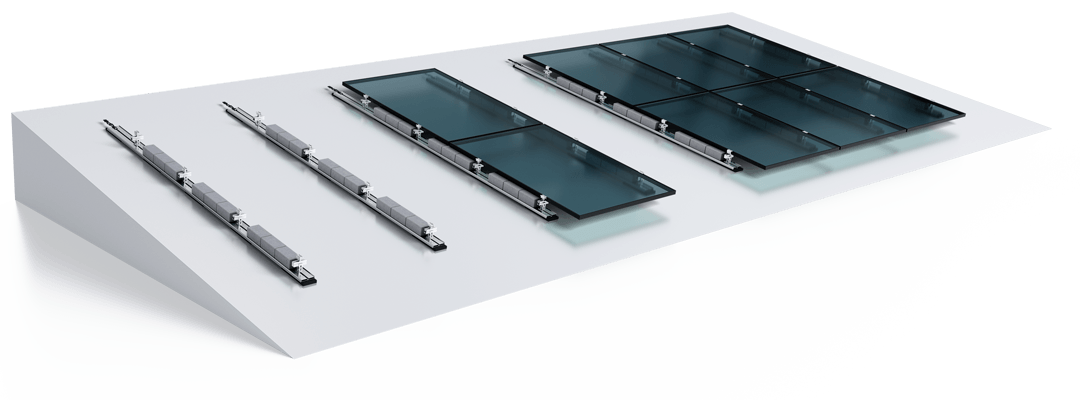

INTRODUCING PROLINE

A new generation of solar mounting systems for pitched and flat roofs

Improving yields continues to be the driving force in the PV sector. For installation systems, this means: less material with better load-bearing capacity, and simpler planning and handling on site to give shorter installation times. With these goals in mind, Schletter has developed a new generation of residential and commercial solar mounting systems from scratch – stronger, lighter, highly durable and easier to install.

COMPONENT OVERVIEW

Download Schletter’s new component overview for roof installations or order a free printed version.

SCHLETTER CLASSIC – SYSTEM OVERVIEW

BALLAST-OPTIMIZED SOLUTIONS

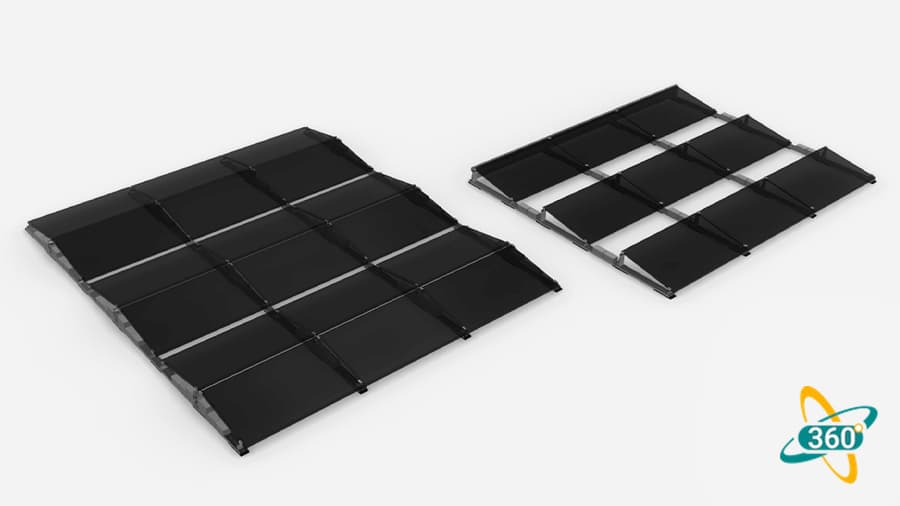

FIXGRID18

Description:

  • Aerodynamic flat roof tracking system
  • Can be raised to 6° and 13° angle or 10° angle on request
  • Ballast optimized
  • Available with quarter-point clamping for the modules on request
  • Includes building protection with aluminum lamination



Advantages:

  • Quick assembly
  • Easy to store
  • Great value
  • Optimized tools and materials
  • No additional hardware needed for up to a 5° roof pitch

Downloads:

FIXGRID18

FLATGRID

Description:

  • Cost-efficient system for slightly inclined or flat roofs
  • Roof-parallel (flush mount)
  • Unit assembly system is compatible with most Schletter components



Advantages:

  • Very few superimposed loads required
  • Integrated surface protection mat
  • Optimized for material and cost
  • Schletter Configurator

Downloads:

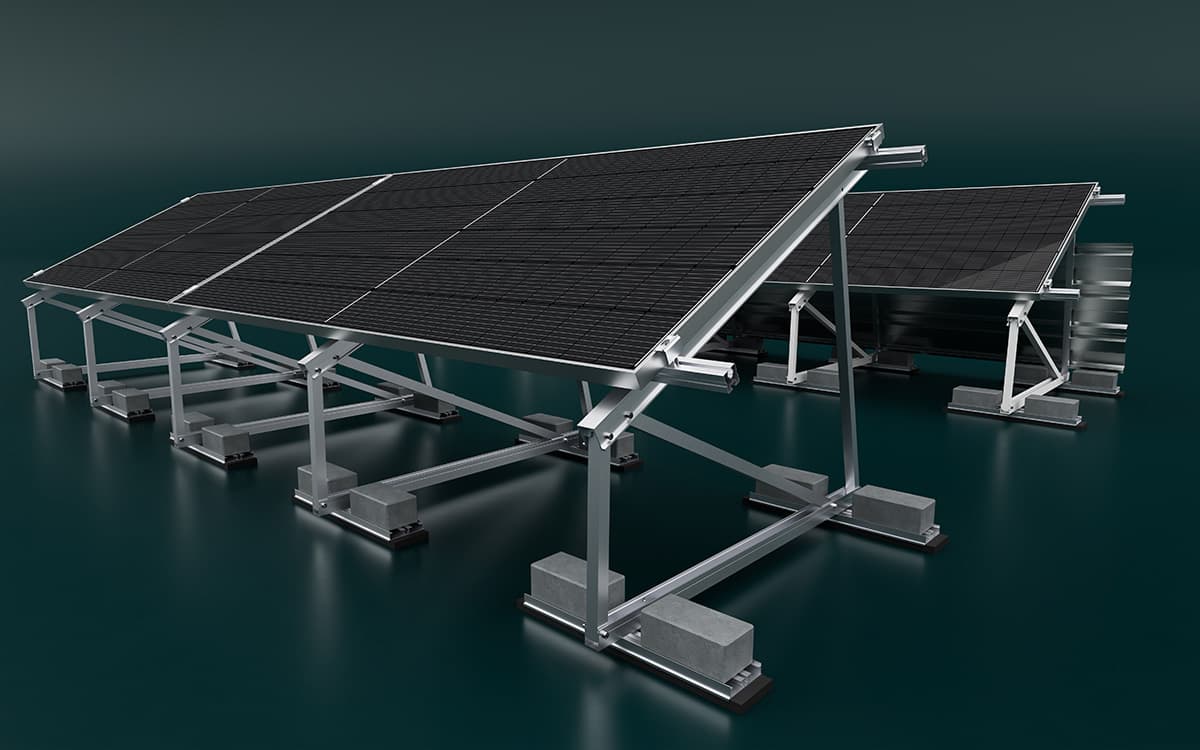

SUPPORT SYSTEMS

Description:

  • Various system configurations for any elevation angle
  • Ballasted and mechanically linked variants
  • Select support angles in 5° increments



Advantages:

  • Optimal yields
  • Can be combined with all Schletter standard products
  • Quick assembly

Downloads:

FASTENING TO THE SUBSTRUCTURE

ISOTOP

Description:

  • Designed for industrial roofs with wide spans
  • Fastens to the girders
  • Object planning is based on an individual structural analysis software



Advantages:

  • Reduced loads on the roof substructure
  • Direct load application for the supporting structure of the building
  • Optimized and minimized roof penetrations
  • Improved connection details

Downloads:
